Guide To Fuel
Flow Meters:
What You Need
to Know About
Accurate Fuel
Measurement
Fuel is a major operational cost for industries that depend on transportation, machinery, and energy. With rising prices and tighter environmental regulations, accurate fuel measurement is more important than ever. Whether you manage a fleet, a construction site, or agricultural equipment, understanding how fuel flow meters work can help reduce waste, cut costs, and stay compliant.
In this guide we’ll take a look at the different types of fuel flow meters, explore their key features and benefits, and provide advice to help you choose the right one for your needs.
Article Summary
-
Fuel flow meters are used for tracking fuel usage accurately, helping businesses reduce waste, detect theft, and meet reporting and compliance obligations.
-
Different types of meters offer varying levels of precision, durability, and integration, making it important to choose the right type for your application.
-
Fuel compatibility is critical; selecting a meter that matches your fuel type prevents corrosion, blockages, and inaccurate readings.
-
Modern digital meters can integrate with fuel management systems, enabling real-time tracking, automated reporting, and smarter operational decisions.
-
Proper installation, calibration, and maintenance are essential to ensuring long-term accuracy and avoiding costly measurement errors.
What Are Fuel Flow Meters?
Fuel flow meters are precision instruments designed to measure the volume or mass of fuel that passes through a system. They play a critical role in fuel management by providing accurate data on fuel usage, whether it’s in vehicles, machinery, generators, or fuel storage and dispensing systems. These meters help businesses keep track of fuel consumption in real-time, aiding in efficiency, cost control, and regulatory compliance.
For industries that store and dispense fuel, knowing exactly how much fuel is used is essential. Fuel flow meters provide this visibility, helping to reduce waste, identify anomalies, and ensure accountability in every litre dispensed.
Why Accurate Fuel Measurement Is Important
Accurate fuel measurement underpins cost control, operational efficiency, and environmental responsibility. In sectors like logistics, farming, and construction, fuel can often be one of the largest ongoing expenses. Even small discrepancies in measurement can lead to significant financial losses over time.
Precise fuel data enables businesses to optimise usage, reduce unnecessary idling or wastage, and monitor for theft or leaks. In regulated industries, accurate records are also necessary for tax reporting, carbon emissions tracking, and compliance with fuel consumption standards. Without a reliable fuel metering system, it becomes nearly impossible to maintain transparency and control across operations.
Benefits of Using Fuel Flow Meters
Fuel flow meters provide insights that drive smarter fuel management. From reducing wastage to ensuring compliance and cost savings, the benefits of these devices are wide-reaching and highly impactful across various industries.
Improved Fuel Management
Flow meters help businesses track and monitor fuel use with precision. With this data, companies can reduce wastage, identify inefficiencies, and implement strategies for optimising fuel use. Integration with fuel management systems can further enhance visibility and control.
Cost Control and Savings
Accurate fuel measurement helps businesses keep a close eye on their fuel use, avoiding both over-dispensing and under-dispensing. This level of control not only improves day-to-day efficiency but also helps to identify and address fuel theft or unauthorised use; two issues that can quietly drain company budgets. Over time, these savings can add up to a significant reduction in operating costs.
Compliance and Reporting
Accurate fuel tracking is essential in a lot of industries, not just for operational oversight, but to meet tax, environmental, and regulatory requirements. Fuel flow meters provide dependable data that can be used for audits, emissions reporting, and tax documentation. As regulations around fuel use and sustainability become more stringent, having precise, verifiable records is more important than ever.
Efficiency and Maintenance
Tracking fuel usage can reveal when a machine is using more fuel than it should, which is often a sign that something isn’t working properly. Catching these issues early helps prevent unexpected breakdowns, keeps equipment running efficiently, and can even extend its lifespan. It’s a smart way to stay ahead of maintenance needs and avoid costly downtime.
How Fuel Flow Meters Work
Basic Principle
Fuel flow meters function by detecting and calculating the amount of fuel passing through a pipe or system over time. The fundamental principle is to measure the flow rate - the volume or mass of fuel moving through a system per unit of time - and then convert this into readable data such as litres used, consumption per hour, or total fuel dispensed.
Depending on the technology used, some meters measure volumetric flow (litres per minute), while others measure mass flow (kilograms per minute), which can offer better accuracy when fuel density changes due to temperature.
Key Components of a Fuel Flow Meter
A standard fuel flow meter consists of several important components:
-
The flow sensor is the heart of the device, detecting the actual movement of fuel.
-
The display unit or interface shows readings such as flow rate and total consumption.
-
Some meters also feature temperature compensation systems to ensure measurement accuracy under varying conditions.
Advanced digital models often include data logging capabilities or connectivity features for remote monitoring, allowing integration into broader fleet or fuel management systems. These components work together to deliver real-time, accurate fuel data to operators.

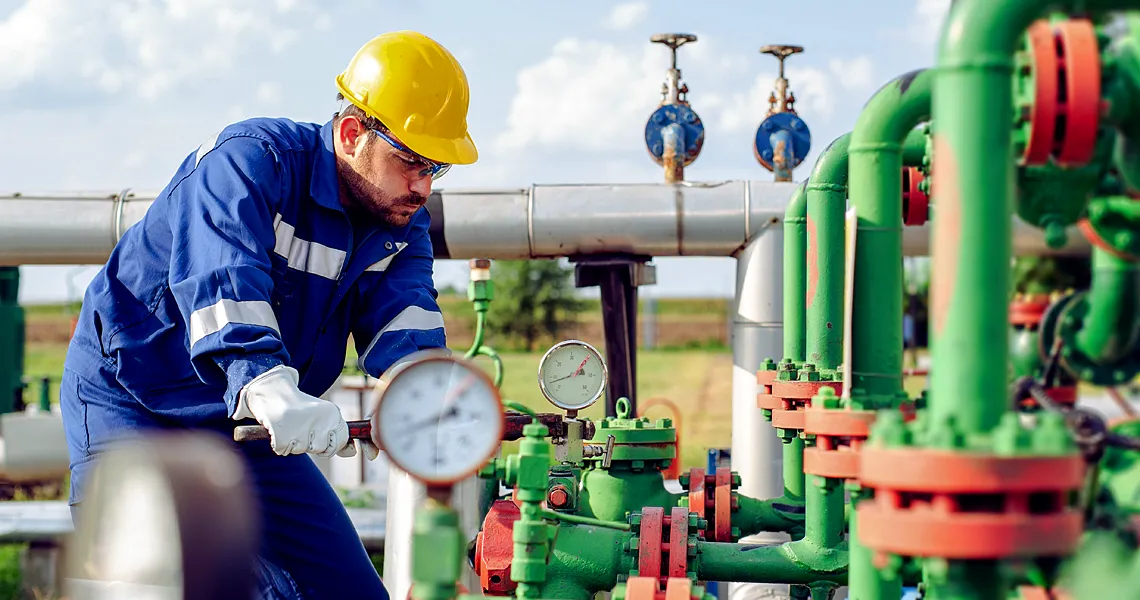

Types of Fuel Flow Meters
There are several types of fuel flow meters available, each using a different mechanism to measure fuel consumption. Understanding how each type works, along with their typical applications, strengths, and limitations, helps you to choose the right meter for your specific operational needs.
Mechanical Fuel Flow Meters
Mechanical fuel flow meters work by using internal mechanical components such as gears, pistons, or rotary vanes that move in response to the flow of fuel. As the fuel flows through the meter, these moving parts rotate or oscillate, and their movement is translated into a volumetric measurement, often displayed through a dial or counter.
These meters are typically used in environments where ruggedness and simplicity are valued over high precision, such as in farms, construction sites, or fuel depots. They are often found in standalone systems or portable fuelling setups where digital integration isn't necessary.
Advantages
Disadvantages
-
Durable and reliable in harsh conditions
-
Simple to install and operate
-
No power supply required
-
Cost-effective for basic needs
-
Mechanical parts wear over time
-
Accuracy may degrade with use
-
Susceptible to clogging from dirty fuel
-
Limited features/no digital data logging
Digital Fuel Flow Meters
Digital fuel flow meters use electronic sensors to measure the flow rate of fuel passing through the system. These sensors typically rely on magnetic, ultrasonic, or electronic pulse technologies to detect fuel movement, which is then converted into digital data displayed on an LCD screen or transmitted to a connected system.
They are widely used in professional fleet management, industrial operations, and any application that benefits from remote monitoring, data logging, or integration with a fuel management system. Their precision and versatility make them ideal for modern, data-driven operations.
Advantages
Disadvantages
-
High accuracy and precision
-
Easy integration with digital systems
-
Real-time data logging and transmission
-
Minimal moving parts reduces maintenance
-
Higher upfront cost
-
Requires a power source or batteries
-
May be sensitive to power surges or faults
-
Can be more complex to install
Turbine Fuel Flow Meters
Turbine flow meters operate by placing a small turbine or rotor within the fuel flow path. As the fuel passes through, it causes the turbine to spin. The speed of rotation is directly proportional to the flow rate and is measured by magnetic or optical sensors, providing real-time flow data.
These meters are most effective in clean fuel systems with steady flow, making them suitable for fleet refuelling stations, aircraft fuelling, and other high-volume, controlled environments.
Advantages
Disadvantages
-
Good accuracy at stable flow rates
-
Suitable for high-volume applications
-
Quick response and fast readings
-
Relatively affordable for digital precision
-
Sensitive to debris and particulate contamination
-
Not ideal for pulsating or very low flows
-
Requires straight pipe runs for accuracy
-
Bearings may wear under prolonged use
Positive Displacement (PD) Meters
Positive Displacement (PD) meters measure fuel flow by capturing fixed volumes of fuel within internal chambers. As the chambers fill and empty, the movement is counted to determine the total volume of fuel that has passed through. This method is extremely accurate and independent of flow velocity, making PD meters one of the most precise fuel measurement technologies available.
PD meters are commonly used in delivery vehicles, commercial fuelling applications, and industrial settings where exact fuel quantities are critical. Their ability to handle various viscosities also makes them suitable for different fuel types, including biodiesel and heavy oils.
Advantages
Disadvantages
-
Extremely accurate across all flow rates
-
Unaffected by fuel viscosity or temperature
-
Suitable for a wide range of fuel types
-
Ideal for billing and commercial transactions
-
Generally larger and heavier than other types
-
Higher maintenance due to moving parts
-
More expensive initial investment
-
Can be sensitive to particles in the fuel
Pulse Flow Meters
Pulse flow meters work by generating electrical pulses in response to the movement of fuel through the system, typically using magnetic or mechanical sensors. Each pulse corresponds to a known volume of fuel, and by counting the number of pulses, the system can determine total fuel usage. These meters are often integrated with external control systems or data loggers.
Pulse meters are highly accurate and ideal in applications where precise digital output is needed for monitoring or automation, such as in fleet systems, fuel dispensers, or industrial equipment. They are valued for their reliability and ability to interface with remote monitoring systems.
Advantages
Disadvantages
-
Provides digital output for automation
-
Compatible with data loggers and controllers
-
Compact and easy to install
-
Work well in closed-loop monitoring systems
-
Requires electronic interface for full use
-
Limited standalone display features
-
May require calibration for accuracy
-
Typically requires power or battery source
How to Choose the Right Fuel Flow Meter
Selecting the right fuel flow meter is critical for ensuring accurate measurement, system efficiency, and long-term reliability. With numerous models and technologies available, it's important to assess your specific operational needs.
Fuel Type and Compatibility
The first step in selecting the right fuel flow meter is to look for those that are compatible with the type of fuel or liquid that the meter will be used to monitor. Different fuels such as diesel, petrol, biofuel, AdBlue, kerosene, lubricants, and even waste oils have unique chemical properties, viscosities, and handling requirements that can affect a meter’s performance.

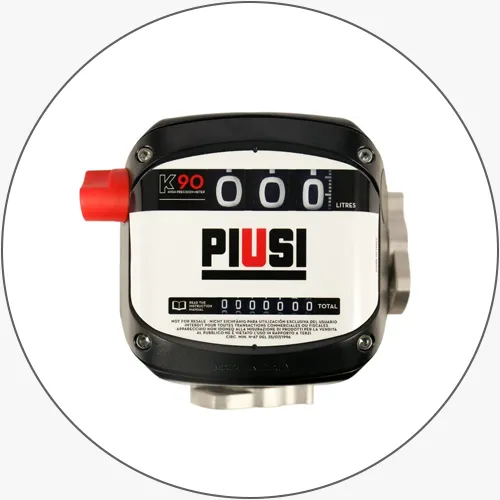

Diesel Flow Meters
Diesel fuel has a higher viscosity than petrol and can contain small amounts of particulate matter or water, especially in off-road or industrial settings. This means flow meters need to be robust, often with larger internal clearances and corrosion-resistant components.
Look for meters with filters or strainer kits, and materials like stainless steel or aluminium. Digital meters are ideal when real-time tracking or data logging is needed.

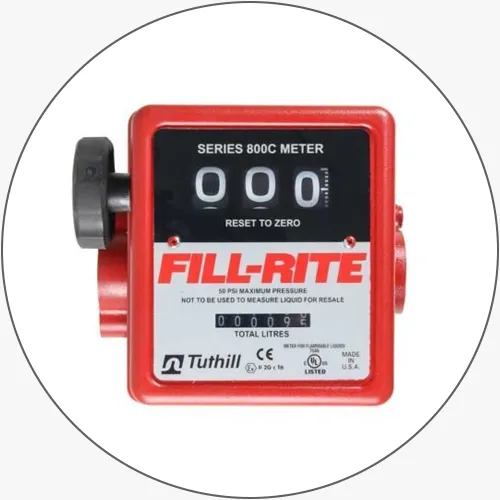

Petrol Flow Meters
Petrol is a lighter fuel that evaporates quickly and is more chemically reactive than diesel, particularly when blended with ethanol. These properties can cause damage to flow meter components made from incompatible materials, such as certain rubbers or metals, leading to leaks or degraded performance over time.
Meters must be explosion-proof and made of materials like stainless steel or special polymers to handle volatile vapours.
AdBlue Flow Meters
AdBlue is a non-petroleum urea solution that’s chemically corrosive to metals like brass or aluminium. Only use meters certified for AdBlue. Temperature compensation is helpful due to its freezing point around -11°C. Meters should be flushed if not in regular use to prevent crystallisation.
View AdBlue Flow Meters

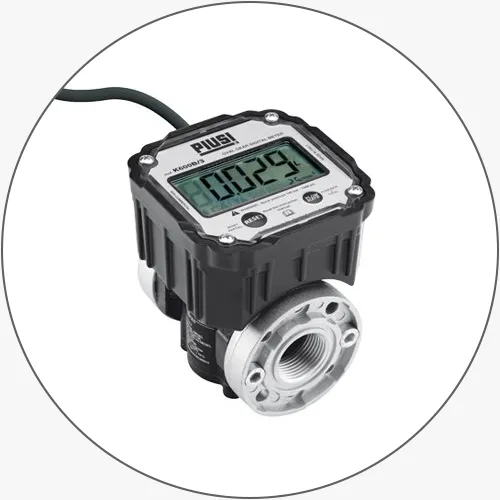

Oil Flow Meters
Oils vary in viscosity, from light lubricants to thick waste oil. Waste oil may also contain debris, sludge, or metal shavings. Oil flow meters should tolerate high viscosity and be easy to clean or maintain. Choose models with wide internal passages and strong seals that resist wear.
View Oil & Lube Flow MetersFlow Rate and Usage
Flow rate refers to the volume of fuel passing through the meter per unit of time, typically measured in litres per minute or hour. Understanding your average and peak flow rates is crucial when selecting a meter that can keep up with demand without sacrificing accuracy.
High-flow meters are suited to large-scale fuelling operations like depot refuelling or commercial tankers, while low-flow meters are ideal for generators, mobile tanks, or precision machinery where detailed tracking is required.
Accuracy Requirements
Accuracy requirements vary depending on how the data will be used. For example, applications that involve billing customers or compliance reporting require extremely precise meters; typically accurate to within ±0.5% or better.
For internal tracking or non-critical operations, a slightly wider margin of error may be acceptable. When selecting a meter, balance your need for accuracy with budget and maintenance considerations.
Mechanical vs Digital
Mechanical flow meters use physical mechanisms to measure fuel, making them durable and easy to maintain. They are well-suited to environments where simplicity, durability, and affordability are more important than digital features.
Digital meters, on the other hand, usually offer higher accuracy, advanced features like remote monitoring, and seamless integration with fuel management systems. The decision between mechanical and digital should be based on operational needs, infrastructure, and available budget.
Integration with Fuel Management Systems
In modern fuel operations, integration of components within a system is often essential. Digital fuel meters can be linked directly to fleet telematics platforms or fuel management software, enabling real-time data capture, remote diagnostics, and automated reporting.
This integration allows managers to monitor trends, prevent fraud, and optimise fuel usage across the board. When selecting a meter, verify that it is compatible with your current systems or scalable to work with future upgrades.
Environmental Conditions and Durability
Your operating environment should strongly influence meter selection. Extreme temperatures, exposure to moisture, dust, vibrations, or chemicals can affect performance and lifespan. Meters built for harsh conditions often feature reinforced casings, corrosion-resistant components, and protective sealing. For example, outdoor installations may require weatherproof meters, while industrial sites may benefit from models rated for hazardous environments.
Choose a meter designed for use in your operating environment. This includes factors like temperature extremes, exposure to dust or water, and physical impact.

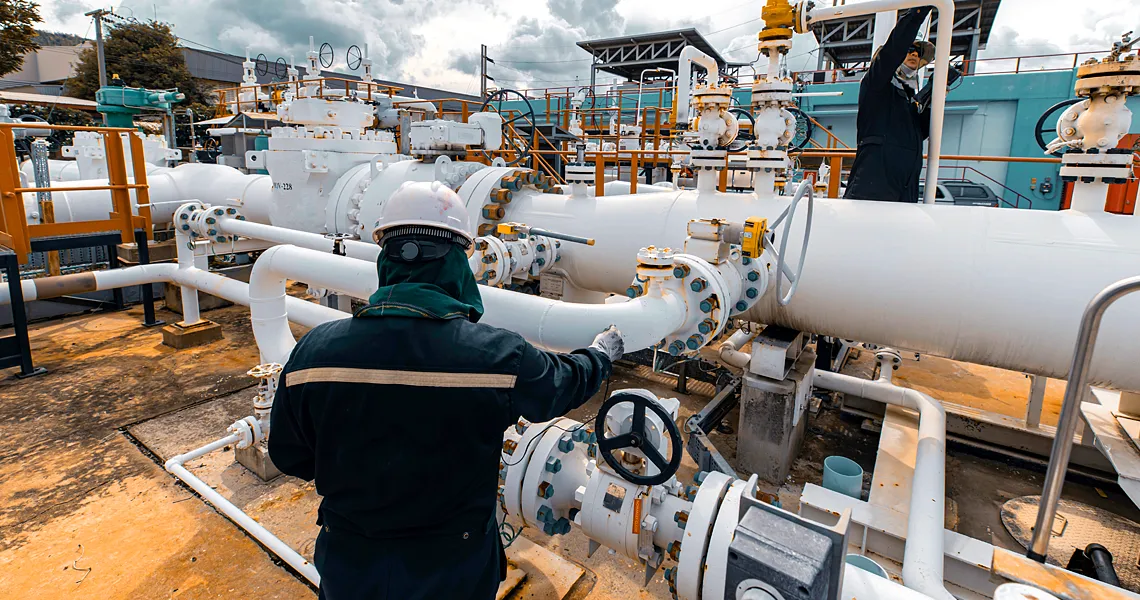

Flow Meter Installation & Maintenance
As with any piece of equipment, proper installation and regular upkeep are essential to get the most out of fuel flow meters. Even the most advanced system can produce unreliable data if installed incorrectly or neglected over time. Ensuring the meter is correctly set up and maintained not only protects your investment but also guarantees accurate, long-term performance.
Installing a Fuel Flow Meter
-
The meter should be positioned in a section of the pipeline where fuel flows steadily and without turbulence.
-
Avoid installing it immediately downstream of pumps, bends, or valves, as these can introduce disturbances that affect accuracy.
-
To prevent inaccurate readings, it's also important to ensure the pipe remains completely filled with fuel at all times as air pockets can significantly distort the data.
-
Depending on the meter design, you may need to install it in a specific orientation, such as horizontal or vertical, as recommended by the manufacturer.
Regular Maintenance and Calibration
Once installed, fuel flow meters need regular maintenance to continue functioning correctly. Over time, components such as filters can become clogged with debris or sediment, especially in environments where fuel quality varies. Routine cleaning helps keep flow paths clear and ensures smooth operation.
Calibration is another critical aspect of maintenance. Even high-precision meters can drift slightly from their factory settings over months or years of use. Periodic calibration, either manually or through automated systems, helps correct these deviations and maintain measurement accuracy.
You should also be alert to warning signs that a meter may need attention. Inconsistent readings, unexpected drops in accuracy, or flow rate fluctuations can all indicate issues such as wear, blockages, or sensor faults. Proactively addressing these signs through inspection and servicing will help extend the meter’s life and maintain dependable performance.
Common Mistakes to Avoid with Flow Meters
Incorrect Meter Sizing
One of the most common errors made when selecting a fuel flow meter is choosing a model that is not appropriately sized for the intended flow rate. A meter that is too large may not register low flow rates accurately, while one that is too small can become overwhelmed and generate erroneous readings.
This mismatch can significantly compromise the precision of your fuel data and potentially damage the equipment. Therefore, it is essential to assess the operational flow range accurately and choose a meter that aligns with those specifications to ensure optimal performance.
Skipping Calibration
Even the most advanced flow meters can drift over time, which is why regular calibration is vital. Without calibration, inaccuracies accumulate, leading to misleading consumption figures and possible financial losses.
In industries where compliance and precise reporting are required, this can result in penalties or audit failures. Businesses should establish a scheduled calibration plan as part of their maintenance routine, using either in-house capabilities or professional services to verify and adjust the meter’s accuracy as needed.
Misalignment or Poor Installation
Even a high-quality fuel flow meter can produce inaccurate results if it’s not installed correctly. Misalignment, incorrect orientation, or poorly prepared pipework can all lead to issues like turbulence, trapped air, or inconsistent flow, all of which can distort readings. Improper installation often results in ongoing troubleshooting, unreliable data, or even premature equipment wear.
To avoid these problems, always ensure installation is carried out by someone familiar with the meter’s technical requirements, and confirm the setup meets the manufacturer’s specifications. A little extra care upfront can prevent costly errors down the line.
Using the Wrong Meter for the Fuel Type
Different fuels have varying chemical properties and viscosities, which can affect how a meter operates. Using a flow meter that is not designed for the specific type of fuel you need to measure can lead to corrosion, blockages, or degraded seals, all of which compromise the meter’s functionality and lifespan. Always verify that the materials and design of the meter are suitable for the fuel type being measured. If your operation involves multiple fuel types, consider a universal or multi-fuel compatible meter.
FAQs About Fuel Flow Meters
Q: What is a fuel flow meter used for?
A: A fuel flow meter is used to measure the amount of fuel flowing through a system, such as into a vehicle, generator, or machine. It helps track consumption, prevent wastage, detect irregularities, and improve fuel management across various industries including transport, construction, and agriculture.
Q: What types of fuel can flow meters measure?
A: Fuel flow meters can be used with a wide range of fuels, including diesel, petrol, kerosene, biodiesel, AdBlue, and various oils (both lubricating and waste). However, not all meters are compatible with every fuel type, so it’s important to check that the materials and design are suitable for the specific fuel you’re using.
Q: How accurate are fuel flow meters?
A: Accuracy depends on the type and quality of the meter. Basic mechanical meters may have an accuracy of ±1–2%, while digital meters can achieve ±0.5% or better. Regular calibration and correct installation are essential for maintaining long-term accuracy.
Q: What’s the difference between mechanical and digital fuel flow meters?
A: Mechanical meters use internal moving parts to measure flow, making them simple and durable, but less precise and lacking advanced features. Digital meters use sensors to provide higher accuracy, and often include features like data logging, remote monitoring, and integration with fuel management systems.
Q: Can I install a fuel flow meter myself?
A: Some basic meters can be installed by an experienced technician or operator following the manufacturer’s guidelines. However, for more complex systems, especially those requiring calibration, integration, or handling hazardous fuels, professional installation is recommended to ensure accuracy and safety.
Q: How often should a fuel flow meter be calibrated?
A: Calibration frequency depends on usage and the application. For high-precision or regulated environments (like commercial fuelling or emissions reporting), meters may need calibration annually or even more frequently. For basic internal tracking, a longer interval may be acceptable. Always follow the manufacturer’s recommendations.
Q:. Do fuel flow meters require maintenance?
A: Yes. Routine maintenance may include cleaning filters or sensors, checking seals and wiring, and calibrating the unit periodically. Neglecting maintenance can result in inaccurate readings or system failure over time.
Q: Can one flow meter measure different types of fuel?
A: Some flow meters are designed for use with multiple fuel types, but many are optimised for a specific fuel. Using an incompatible meter can lead to corrosion, inaccurate readings, or even damage. If your operation involves switching fuels, look for a multi-fuel compatible model.
Ready to Improve Fuel Efficiency?
Fuel flow meters are an essential part of any modern fuel management strategy. They provide the accuracy, visibility, and control businesses need to operate efficiently, reduce costs, and meet regulatory requirements. Whether you're managing a fleet of vehicles, refuelling equipment on a worksite, or operating a busy fuel depot, choosing the right meters can make a significant difference.
