An Expert Guide to Settlement Tanks
Wastewater treatment is a critical process that ensures the protection of our environment and public health. Among the various components of wastewater treatment systems, settlement tanks play a crucial role in separating solids from wastewater. In this comprehensive guide, we will explore settlement tanks, understand their functioning, explore the industries that rely on them, the benefits they offer, and more.
Browse Settlement TanksWhat Are Settlement Tanks?
Settlement tanks, often referred to as sedimentation tanks or clarifiers, are basins where wastewater is held to allow solid particles to settle to the bottom. The settled solid material, known as sludge, is then separated from the cleaner water.
There are different types of settlement tanks:
-
Primary Tanks: Used early in the wastewater treatment process to remove larger solids.
-
Secondary Tanks: Follow biological treatments and allow microorganisms and finer particles to settle.
-
Tertiary Tanks: Used in advanced treatment processes to further polish the treated water.
Why Are Settlement Tanks Needed?
Settlement tanks are a linchpin in water treatment across numerous sectors. Their significance is amplified not just by the sheer need for water purification but also due to stringent regulatory mandates. In the context of the UK, these regulations and guidelines ensure the protection of water resources and the environment at large.
Solid Separation
Before advanced water treatments or biological processes are conducted, removing larger solids is crucial. This not only ensures the efficiency of subsequent processes but also prevents damage or clogging of downstream equipment.
Public Health
Ensuring wastewater is adequately treated is paramount for public health. Polluted water can lead to the spread of diseases and adversely impact the health of communities. Settlement tanks, as a preliminary treatment step, contribute significantly to safeguarding public health. In essence, the requirement for settlement tanks is twofold: they are indispensable for effective wastewater treatment and are vital for adhering to the UK's stringent regulatory landscape. These tanks ensure that industries, municipalities, and other entities act in harmony with both environmental and public health objectives.
Regulatory Compliance
The UK has a set of strict water quality standards. Industries, businesses and municipal authorities are mandated to meet these standards before discharging wastewater into the environment. Settlement tanks play a pivotal role in this, aiding entities to comply with these standards.
Protection of Water Bodies
The UK is home to a myriad of rivers, lakes, and coastal areas. Contaminated wastewater discharge can imperil aquatic life and degrade the quality of these water bodies. Settlement tanks serve as the first line of defence, removing a significant portion of contaminants.
Environment Agency Guidelines
The Environment Agency (EA) has set forth a plethora of guidelines, underscoring the importance of effective wastewater treatment. One such guideline is PPG1 (Pollution Prevention Guidelines 1), which emphasises the need to prevent pollution and reduce environmental harm. Specifically, it guides industries and businesses on general principles to protect the environment. By using settlement tanks, organisations can ensure that water released doesn't carry harmful pollutants, thereby adhering to PPG1 guidelines.
Economic Implications
Non-compliance with water treatment standards can lead to hefty fines and sanctions. Employing settlement tanks is not only a nod to environmental stewardship but also a strategic move to avert potential economic repercussions.
How Do Settlement Tanks Work?
Settlement tanks operate primarily based on the principle of gravity. By allowing wastewater to remain relatively undisturbed in a basin, particles that are denser than water settle to the bottom due to gravitational forces. On the other hand, particles that are less dense than water, such as oils and certain types of organic materials, float to the surface. This sedimentation process is critical in removing a significant portion of the pollutants from wastewater.
A closer inspection reveals a more intricate process and a number of crucial components that ensure the tank's efficient operation:
Coagulation and Flocculation (in some tanks)
Before wastewater enters the settlement tank, chemicals called coagulants may be added. These cause fine particles to bind together, forming larger clumps known as flocs. In the subsequent flocculation chamber, gentle mixing allows these flocs to grow in size, making them easier to settle in the sedimentation zone.
The process might sound straightforward, but the design and operation of settlement tanks require precision. Factors like water retention time, tank depth, the surface area, and hydraulic loading rate can significantly impact the efficiency of the sedimentation process. Proper design and regular maintenance are pivotal to ensure that the tank operates at its optimal capacity.
Inlet Zone
This is where the wastewater enters the settlement tank. It's designed to dissipate the energy of incoming water to prevent turbulence in the main sedimentation zone. Proper design ensures that particles aren't re-suspended after they've settled.
Settlement or Sedimentation Zone
This is the primary area where the actual settling of particles takes place. It's the largest section of the tank. The water here is undisturbed, allowing particles to gradually settle at the bottom.
Scum Collection System
Lightweight particles and substances, such as oils, grease, and some organic materials, float to the water's surface. Blades or skimmers move along the water surface to collect and remove this floating material.
Outlet Zone or Launder
Once the sedimentation process is completed, the treated water, which now occupies the upper portion of the tank, is collected in the outlet zone. Baffles are often present to ensure that the exiting water does not carry with it any floating scum or unsettled particles.
Sludge Collection System
As particles settle to the bottom of the tank, they form a layer of sludge. To prevent this sludge layer from becoming too thick and potentially re-suspending particles into the water column, it's periodically removed. This is done using mechanisms like motorised scrapers, which push the sludge towards a hopper. From there, it's pumped out for further treatment or disposal.
Weirs
These are barriers placed at the tank's outlet. They help maintain a consistent water level in the tank and ensure a uniform flow of treated water out of the system.

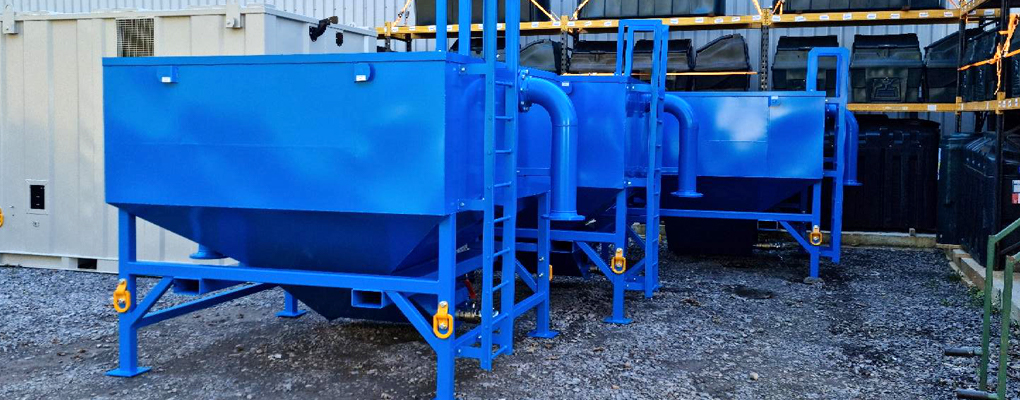

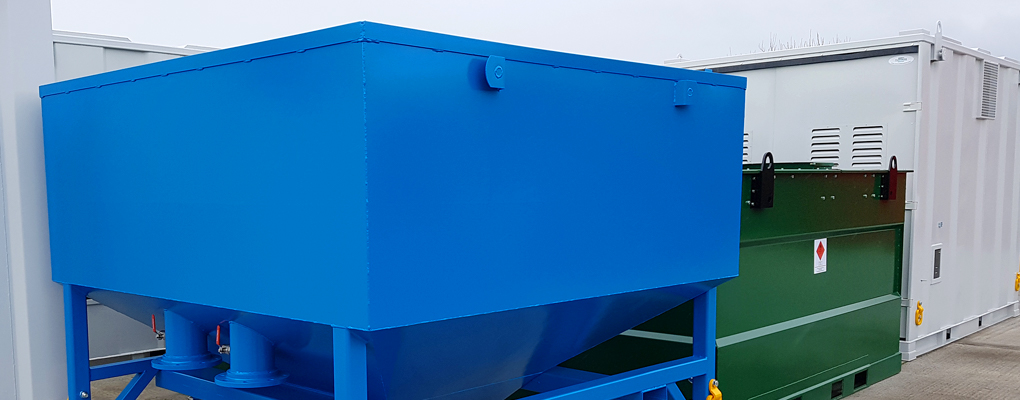

Lamella Plate Settlement Tanks
Lamella plate settlement tanks, often simply referred to as “de-silters”, "lamella clarifiers" or "inclined plate settlers," represent a modification of the traditional sedimentation process. They offer increased efficiency in a compact design, making them suitable for locations where space might be a limitation.
What Are Lamella Plate Settlement Tanks?
Lamella plate settlement tanks are a type of clarifier designed to remove particulates from liquids. They consist of a series of inclined plates or tubes, which provide a large effective settling area for suspended particles within a relatively small footprint.
Lamella Plate Tanks vs Traditional Settlement Tanks
There are a few main differences between lamella plate de-silters and traditional settlement tanks:
-
Space Efficiency: One of the main advantages of lamella plate tanks is their compact design. The inclined plates provide a large surface area for sedimentation within a small physical footprint, making them ideal for applications where space is a premium.
-
Shorter Settling Distance: In traditional tanks, particles have to settle through the entire depth of the tank. In lamella clarifiers, particles only have to settle the distance between the plates, which is much shorter, thus speeding up the sedimentation process.
-
Scalability: Due to their modular design, lamella plate settlement tanks can be easily scaled up or down based on the treatment requirement.
-
Lower Sludge Volume: The design of lamella clarifiers often results in a more concentrated sludge output, which can reduce subsequent sludge treatment costs.
-
Maintenance: While lamella clarifiers have many advantages, they also come with specific maintenance needs. The plates must be kept clean and free of any obstructions to ensure efficient operation.
How Do Lamella Plate Tanks Work?
The operational principle behind lamella clarifiers is similar to that of conventional sedimentation tanks, but with a twist:
-
Inflow: Wastewater enters the tank and may first undergo coagulation and flocculation to form larger particles if it hasn’t already.
-
Settling: Instead of relying solely on gravity to let particles settle, the wastewater flows through the inclined plates or tubes. These plates are set at an angle, and as the water flows between them, particles settle onto the plates due to gravity.
-
Sliding Down: Once the particles settle onto the plates, they begin to slide down the plates due to the incline.
-
Collection: At the bottom of the plates, the settled particles gather and are directed to a sludge collection system, from where they are periodically removed.
-
Treated Water Exit: The clarified water moves upwards and is collected at the top of the tank, from where it's channelled out.
Industries & Processes Where Settlement Tanks Are Used
Settlement tanks are not solely the domain of standard wastewater treatment; they find applications in a broad spectrum of industries. Let’s look at some of the main applications for settlement tanks across various sectors:
Wastewater Treatment Plants
Perhaps the most common use for settlement tanks, industrial wastewater treatment plants use them as a primary step to remove suspended solids and organic materials which is essential for treating sewage and ensuring water returned to the environment or repurposed is clean.
Civil Engineering
During large construction projects, especially those near water bodies, sediment-laden runoff can be a major concern. Settlement tanks are employed to treat this water, protecting the surrounding environment.
Slurry
In industries where a mixture of liquid and solid particles is used or produced (like certain manufacturing processes), settlement tanks help in separating the solid particles from the liquid.
Overpumping
In scenarios where water is pumped out from construction sites or flood zones, settlement tanks ensure that the over pumped water is free from large sediments before it is released or redirected.
Site Dewatering
In construction or remediation sites where groundwater or excess water is removed, settlement tanks ensure the extracted water is treated and clarified before being discharged.
Local Authorities
Local authorities regularly employ settlement tanks in various capacities, be it for managing stormwater, treating wastewater, or maintaining public utilities.
Clean and Dirty Water
Settlement tanks are used in potable water treatment plants to allow contaminants in the source water to settle before undergoing further purification processes. Conversely, they're also used in dirty water from industrial processes to separate solids and make subsequent treatments more efficient.
Quarries
Stone extraction processes result in the production of large amounts of particulate-laden water. Settlement tanks allow these particles to settle, ensuring that the water released from quarries doesn't carry a heavy load of suspended solids.
Tunnelling
Water from tunnelling projects often carries with it a load of fine sediments. Before this water is discharged, it's treated in settlement tanks to prevent environmental contamination.
Food & Beverage
With residues from food processing, settlement tanks help in preventing large organic loads from entering water bodies.
Sludge
In wastewater treatment, the settled particulates accumulate at the bottom, forming a semi-solid waste known as sludge. Settlement tanks aid in sludge thickening, concentrating it before it's subjected to further treatments or disposal.
Utilities
Utility companies often deploy settlement tanks during maintenance or upgradation activities, treating water before it's discharged back to the environment.
Mines
Mining effluents can be heavily loaded with sediments. Whether it's water from the extraction process or runoff from mining sites, settlement tanks help in treating these effluents.
Agriculture
Farms often use settlement tanks to treat runoff that might contain soil, organic materials, or even residues from pesticides and fertilisers.
Textiles, Paper & Pulp
These sectors produce a significant amount of wastewater with varied pollutants, making sedimentation a critical step in their wastewater treatment process.
Each of these industries and applications has specific requirements and challenges. Still, the fundamental principle remains the same: allowing suspended particles to settle, ensuring cleaner, treated water.
Benefits of Using Settlement Tanks
Settlement tanks, whether traditional or specialised like lamella plate variants, offer an array of benefits in wastewater treatment and various industrial applications. These benefits stem not just from the tanks' operational efficiency but also from their economic, environmental, and health implications.
-
Effective Solid Separation One of the primary benefits of settlement tanks is their ability to separate and concentrate suspended solids effectively. By doing so, they reduce the load on subsequent treatment processes, enhancing the overall efficacy of wastewater treatment.
-
Reduced Environmental Impact By effectively removing a significant portion of pollutants from wastewater, settlement tanks help in ensuring that water discharged into the environment is clean enough to avoid damage, protecting aquatic ecosystems and ensuring the health and sustainability of water bodies.
-
Regulatory Compliance Abiding by environmental standards and regulations is paramount for industries and local authorities alike. The UK, for instance, has stringent water quality standards and without effective primary treatment that settlement tanks provide, it becomes challenging, if not impossible in many scenarios, to meet regulatory requirements.
-
Cost-Efficiency While the upfront investment for installing a settlement tank can be substantial, the long-term operational costs are relatively low. Since they primarily rely on gravity for operation, there’s a minimal energy expenditure involved. Furthermore, they help in reducing costs in subsequent treatment stages by pre-treating the wastewater effectively.
-
Space Optimisation Lamella plate settlement tanks, in particular, are a testament to space efficiency in water treatment. With their compact design offering a large settling area, they make it possible to have effective water treatment in areas where land or space is at a premium.
-
Flexibility & Scalability Settlement tanks, due to their relatively simple design, can be easily scaled up or down based on the treatment needs. This scalability ensures that industries or municipalities can adjust as their water treatment requirements evolve.
-
Enhanced Public Health Protection For wastewater treatment, settlement tanks play a pivotal role in protecting public health. By removing a large percentage of contaminants, they reduce the risk of waterborne diseases and ensure the safe discharge or reuse of treated water.
-
Consistency in Water Quality Settlement tanks offer a consistent output in terms of reduced suspended solids and other particulates. This consistency ensures that subsequent treatment processes can be optimised for predictable input water quality.
-
Resource Recovery In some industries, the particles that settle at the bottom of the tank can be valuable. For instance, in mining or certain manufacturing processes, these particles might be recovered and reused.
-
Lower Chemical Usage With effective solid-liquid separation, the requirement for chemicals in subsequent treatment stages might be reduced. This can lead to cost savings and a reduced environmental footprint associated with chemical production, transportation, and usage.
-
Reliability Settlement tanks have been a cornerstone of water treatment for decades. Their enduring relevance is a testament to their reliability and effectiveness. With regular maintenance, they can provide consistent performance for many years.
Challenges and Limitations of Using Settlement Tanks
While settlement tanks provide a plethora of benefits, as with any technology or process, they come with certain challenges and limitations. Recognizing these challenges is essential for optimising their performance and understanding where additional treatments or methods may be required.
Maintenance Needs
The accumulation of sludge and debris over time necessitates regular maintenance and cleaning. Without timely maintenance, the efficiency of the tank can diminish, leading to decreased performance and potential damage.
Particle Size Limitations
Ultra-fine particles and colloidal substances might not settle effectively in standard settlement tanks. Such particles often require additional treatment stages, such as coagulation and flocculation, to enhance their removal.
Hydraulic Loading
Settlement tanks are designed to operate efficiently within a specific range of flow rates. If the inflow exceeds this range, it can lead to reduced settling efficiency and increased chances of solids carryover.
Temperature Sensitivity
The settling efficiency can sometimes be affected by temperature changes. Cold water increases the viscosity, potentially slowing down the sedimentation of particles.
Land Footprint
Traditional settlement tanks, especially for large-scale applications, can occupy a significant amount of land. This might not be ideal in urban areas or industries where space is at a premium. While lamella plate settlers offer a solution, they might not be suitable for all applications.
Scum Removal
While the bottom-settled sludge is often addressed, floating scum or oils can sometimes be a challenge. They require specialised skimming mechanisms, and if not removed effectively, they can cause issues in subsequent treatment processes.
Biological Growth
In some cases, especially if the retention time is long and there are available nutrients, there can be growth of algae or other microorganisms in the tanks. This can affect the clarity of the effluent and sometimes lead to taste and odour issues.
Limited Nutrient Removal
Settlement tanks primarily address suspended solids. They do not offer significant removal of dissolved nutrients like nitrogen and phosphorus, which might be crucial for some applications, especially in areas with strict nutrient discharge limits.
Construction and Material Costs
Durable and corrosion-resistant materials are essential for the longevity of settlement tanks. This can drive up the initial investment costs, especially for larger installations.
Turbidity and Color
While settlement tanks remove a significant portion of suspended solids, they might not be as effective in removing turbidity or colour, which can require additional treatment processes.
Settlement Tank Maintenance
Settlement tanks are inherently susceptible to three main challenges
-
Corrosion
-
Erosion
-
Chemical attack
These issues can manifest as the deterioration of concrete structures, erosion or corrosion of metal components, and the failure of expansion joints.
Maintaining settlement tanks is therefore crucial for their optimal performance and longevity. Regular inspection and cleaning procedures are essential to prevent issues and ensure efficient operation.
Routine inspections should be conducted to identify any signs of corrosion, erosion, or structural deterioration. Cleaning the tank and removing accumulated sludge should be performed periodically to maintain its capacity and prevent blockages.
Additionally, monitoring and testing the tank's performance parameters, such as flow rates and settling efficiency, can help identify any operational deviations or inefficiencies. Proper maintenance of settlement tanks also involves addressing any identified issues promptly, such as repairing or replacing corroded components and maintaining protective coatings.
Ensuring Settlement Tanks Operate Efficiently
The efficient operation of a settlement tank is essential to ensure its optimal performance in water and wastewater treatment processes. Several key practices can contribute to efficient tank operation. Firstly, controlling the flow speed of the incoming water through inlet pipes helps minimise turbulence and disruption of settled solids, improving settling efficiency.
Regular monitoring of influent characteristics, such as flow rate and pollutant load, enables operators to adjust operational parameters accordingly. Maintaining appropriate sludge levels and implementing timely sludge removal procedures prevent excessive accumulation and potential interference with settling performance. Proper calibration and maintenance of instrumentation and control systems are also crucial for accurate monitoring and control of tank operations.
As well as this, be sure to adhere to recommended operating guidelines, including monitoring the settled water level, sludge blanket depth, and overflow weirs, ensuring optimal performance. Regular inspections, maintenance activities, and staff training contribute to overall operational efficiency and effective management of settlement tanks.
Future Trends & Advancements in Settlement Tank Design
The ever-evolving nature of technology, coupled with growing environmental concerns and the incessant push towards sustainable practices, points towards an exciting future for settlement tanks. Several emerging trends and potential advancements are likely to shape the next generation of these essential water treatment components.
-
Alternative Methods Innovations like lamella clarifiers, which use inclined plates to increase settling efficiency, are becoming popular.
-
Digital Monitoring and Automation The integration of sensors and automation into settlement tanks is becoming increasingly prevalent. These sensors can monitor various parameters like turbidity, sludge level, and flow rate in real-time. Automated systems can then make adjustments to optimise performance, ensuring consistent water quality and reducing manual intervention.
-
Advanced Materials The longevity and efficiency of settlement tanks can be impacted by the materials used in their construction. Corrosion-resistant, lightweight, and more durable materials are being developed. These advancements might extend the lifespan of tanks and reduce maintenance needs.
-
Energy Efficiency As global emphasis on energy conservation intensifies, future settlement tanks might incorporate features that minimise energy consumption, especially in parts like pumps or mixers, if used.
-
Hybrid Systems Combining the features of various types of settlement tanks or integrating them with other treatment processes in a single unit can lead to enhanced efficiency. For instance, a system that integrates coagulation, flocculation, and sedimentation in a single unit can provide more consistent and faster treatment.
-
Natural and Green Solutions Drawing inspiration from nature, there's a growing trend towards the use of "living systems" like constructed wetlands that mimic natural sedimentation processes. These systems are not only effective but also environmentally friendly and can serve as green spaces in urban areas.
-
Modular and Scalable Designs As urban areas grow and space becomes even more premium, modular settlement tank designs that can be easily scaled up or down based on requirements will become essential. Such designs can also be quickly deployed in emergency situations or temporary setups.
-
Enhanced Sludge Management The sludge generated in settlement tanks, especially in wastewater treatment, can be rich in nutrients. Future trends might see more integrated approaches where sludge is treated onsite for resource recovery, turning waste into valuable by-products like biogas or compost.
-
Adaptation to Climate Change With changing precipitation patterns and extreme weather events, future settlement tanks might need to handle variable inflow rates. Designs that can efficiently operate under fluctuating conditions will become crucial.
-
Improved Particle Removal Technologies Nanotechnology and advanced chemical formulations might offer solutions to enhance the removal of ultra-fine and colloidal particles, addressing one of the primary limitations of current settlement tanks.
Considerations When Buying or Specifying a Settlement Tank
When delving into the world of settlement tanks, various aspects should be taken into consideration to ensure that the chosen tank meets your specific requirements and delivers optimal performance. Making an informed decision can save time, resources, and avoid potential complications in the future.
Tank Capacity & Size
It's crucial to determine the volume of water the tank will handle and discharge. This calculation should factor in the amount and type of sediment present within the water. Remember, smaller particle sizes take longer to settle, implying the need for a tank with an appropriate size and capacity.

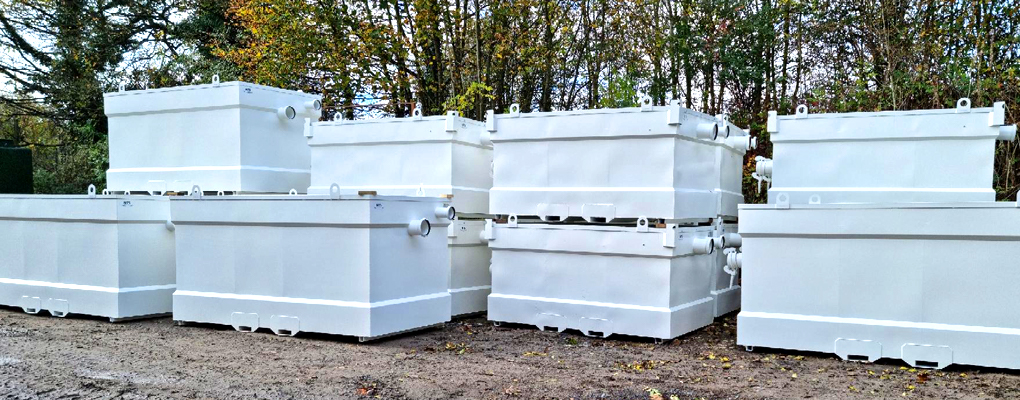

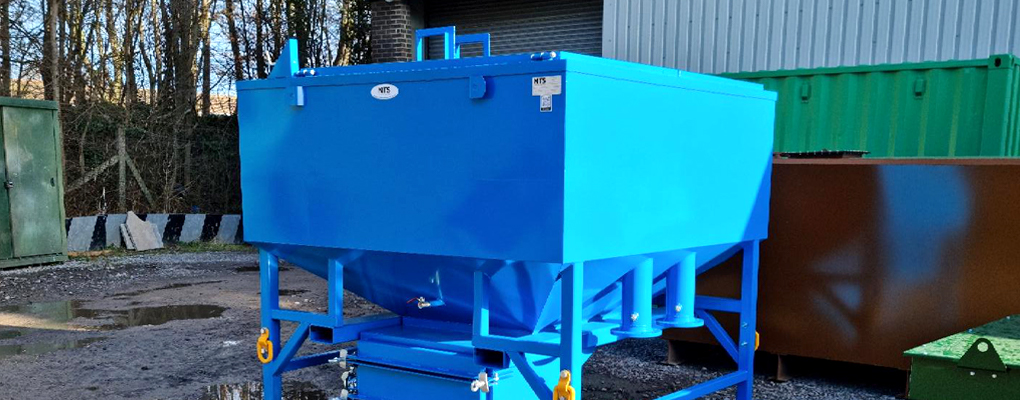

Mobility & Installation
Depending on your site and project requirements, consider if the tank needs to be mobile. Features like lifting points can greatly facilitate movement and placement.

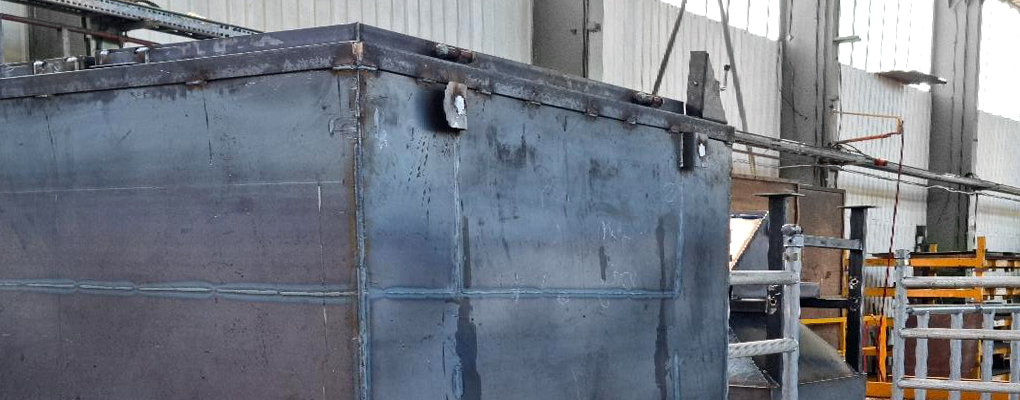

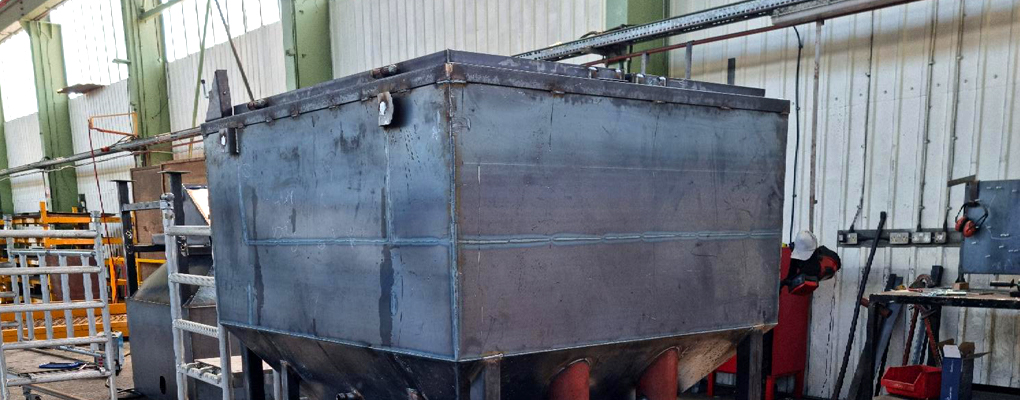

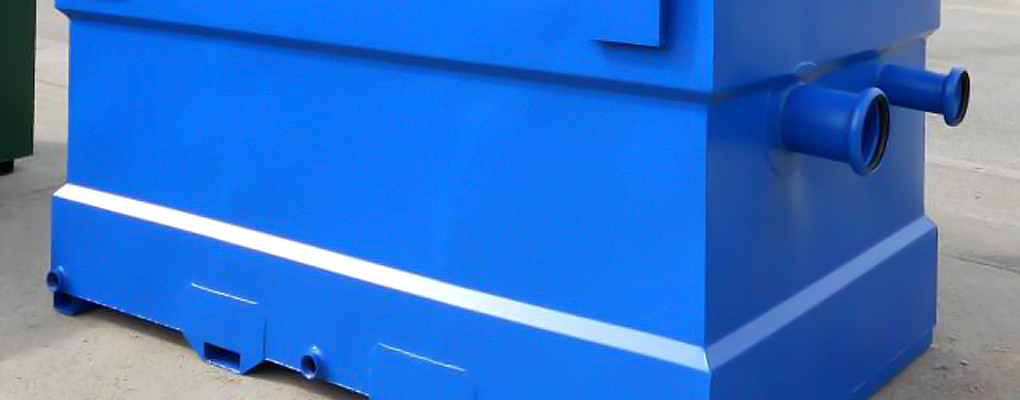

Construction Material
While many materials are available for tank construction, steel offers durability, strength, and longevity. Ensure that the material used aligns with your project's demands and the expected lifespan of the tank.
Accessories and Fittings
Depending on your specific needs, various accessories might be required. Flowmeters, connection pipes, hoses, and particle filters are among the many fittings that can enhance the tank's functionality.

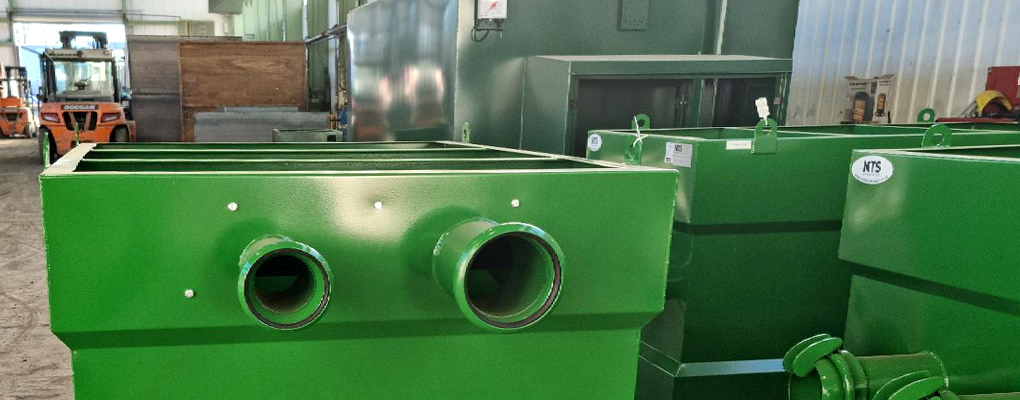

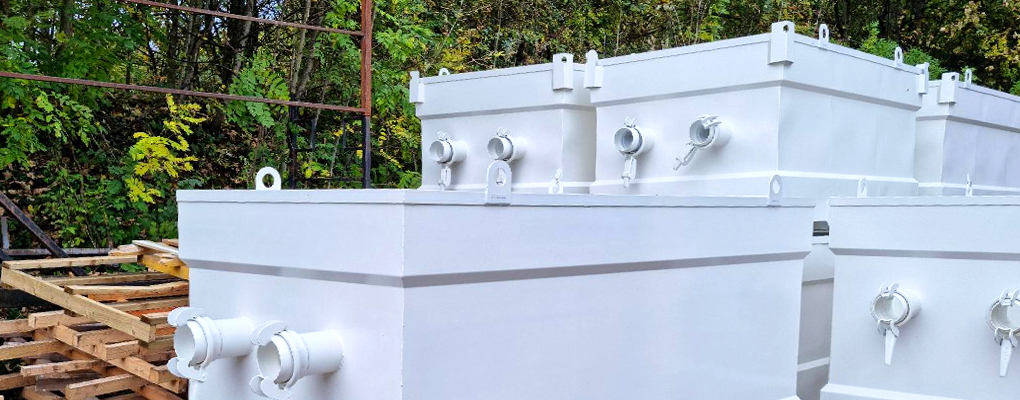

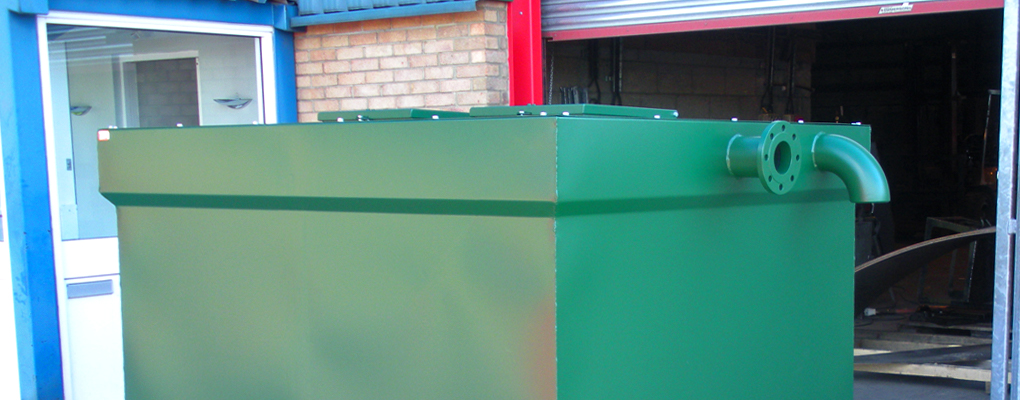

Inlets and Outlets
Check that the tank has industry-standard inlets and outlets, ensuring compatibility with existing systems and making integration seamless.
Lead Times
Especially in emergency situations, swift delivery can be crucial. Ensure that the supplier can meet your timeline requirements.
