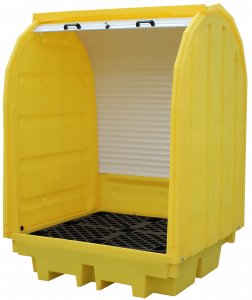

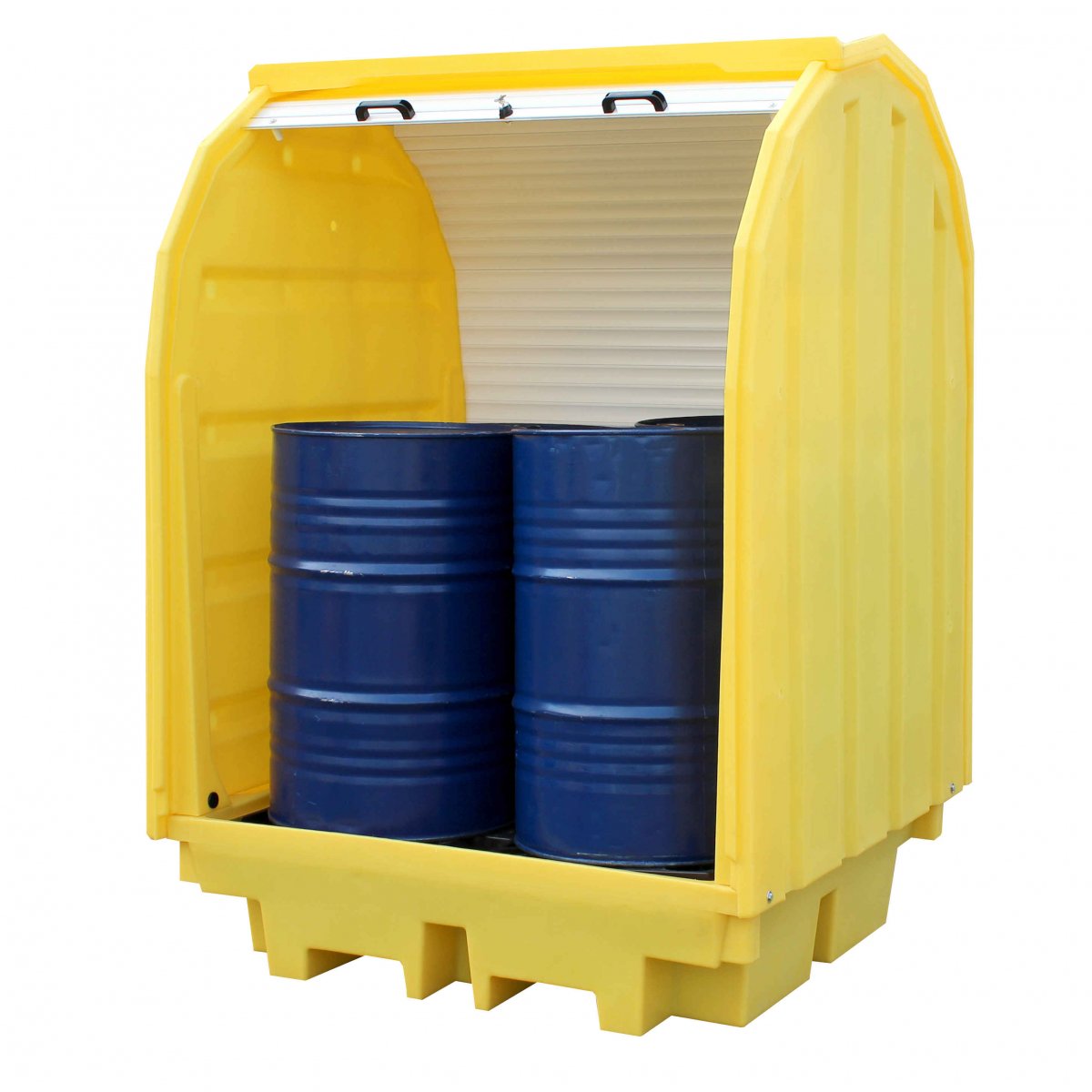

410 Litre Hard Covered Drum Spill Pallet - 4 Drum

What is a Clearflow Interceptor Drip Tray

The  Clearflow Interceptor Drip Tray is a self-emptying drip tray which incorporates a unique patented filter system that allows trapped water to free flow to ground (eliminating the risk of overflowing during prolonged rainfall) whilst containing any contaminant that has been caught within the tray.

What does the Clearflow Interceptor Drip Tray do

The Clearflow Interceptor Drip Tray provides temporary or permanent storage for items such as Generators and when placed beneath a pump or generator any drips, leaks or spills which may occur are held within the Tray preventing contamination of the surrounding area.

Conventional drip trays will over time fill with rain water eventually overflowing allowing any contaminated water to flow to the ground around it.

The Clearflow Interceptor Drip Tray eliminates the risk of overflowing that is seen when using a conventional drip tray by allowing the trapped water only to free flow to ground.

How does it work?

The basic principle behind the Clearflow Interceptor Drip Tray is that oil floats on water meaning that when the water level in the tray raises any oils caught in the tray will remain on its surface, excess water is allowed to draining through the patented filter system that ensures full removal of all traces of oil that may still be present in the water. The long life filters will hold up to 7.5 litres. Easy removal of the filter basket allows filter replacement to be carried out in a safe and controlled manner.

Specification

The Clearflow Interceptor Drip Tray is manufactured from steel plate to BS EN 10025-2:2004 S275JR and is fully seam welded forming a liquid tight bund. The trays are fitted with removable galvanised support beams that hold any items placed on top above any water trapped within the tray and also allow access to the bund for cleaning etc. Integral lifting points are fitted for ease of lifting and siting of the trays. Base plinths reducing the risk of damage when in contact with the ground.

Compliancy

The use of drip trays is now a legal requirement under the control of pollution regulations.

Oil Pollution Prevention Guidelines (England & Wales) 2002 PPG2

PPG26

The unique design of the Clearflow Interceptor Drip Tray provides you with a fully compliant way of meeting the needs of these regulations with a single unit.

Sizes available

The  Clearflow Interceptor Drip Tray is available in various standard sizes ,can be placed together to form a larger area if required or can be bespoke built to match your exact requirements.

Rotationally moulded using recycled polyethylene and designed to accommodate 4 x 205ltr drums this low profile spill pallet (only available in black) has a removable plastic grid for easy access to clean the sump and is fitted with fork pockets to help with moving the pallet (we do not advise this is done when laden as the drums could slide off, or if unevenly loaded it could damage the spill pallet).

Backed by a 3 year guarantee.

Designed to give you the flexibility of using a poly spill pallet outdoors without the sump filling with rainwater this 4 drum spill pallet comes complete
with a self-assembly steel frame and polyethylene cover. The opening flap of the cover has ties to hold it in place when “rolled” open. The sump complies with all the UK regulations relating to sump capacities.

Backed by a 3 year guarantee.

Manufactured from medium density polyethylene this spill pallet, designed to hold 4 x 205ltr drums has a 0.6mm galvanised steel (powder coated paint finish) cover fitted with hinged doors and retaining catches to hold them open during loading and unloading. The metal cover is secured to the spill pallet by means of M8 dome head Allen bolts & nyloc nuts.

Backed by a 3 year guarantee.
